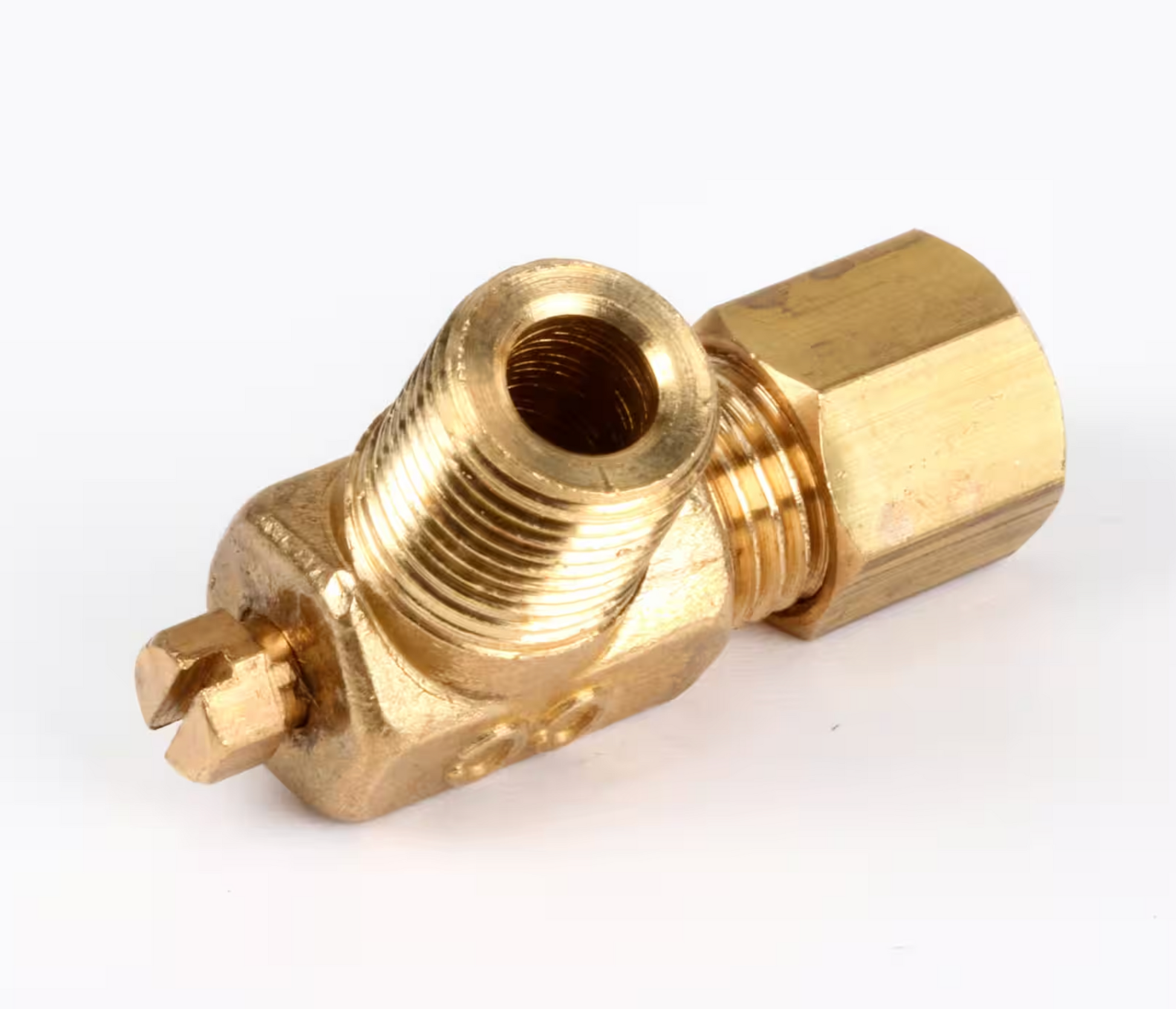

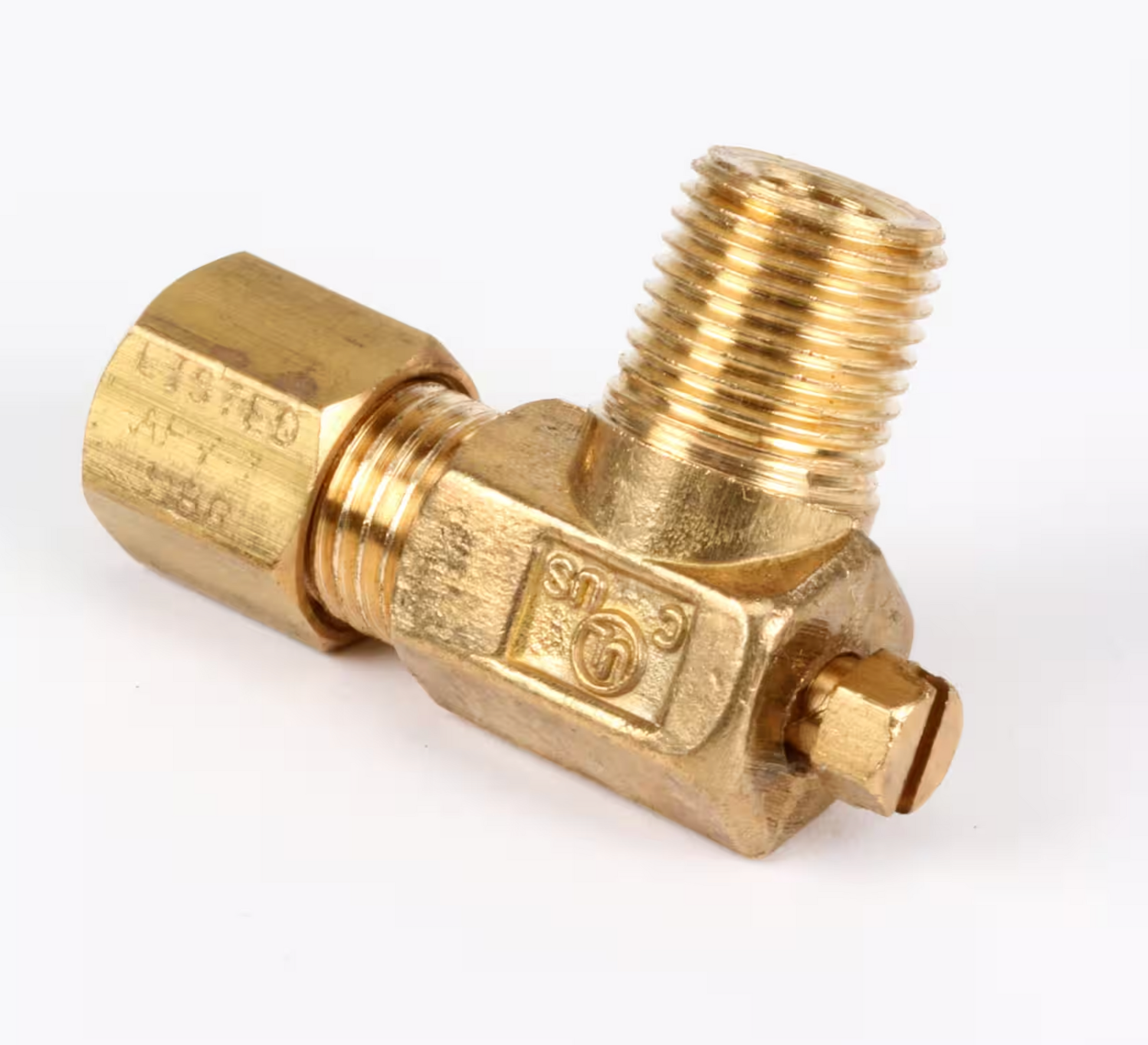

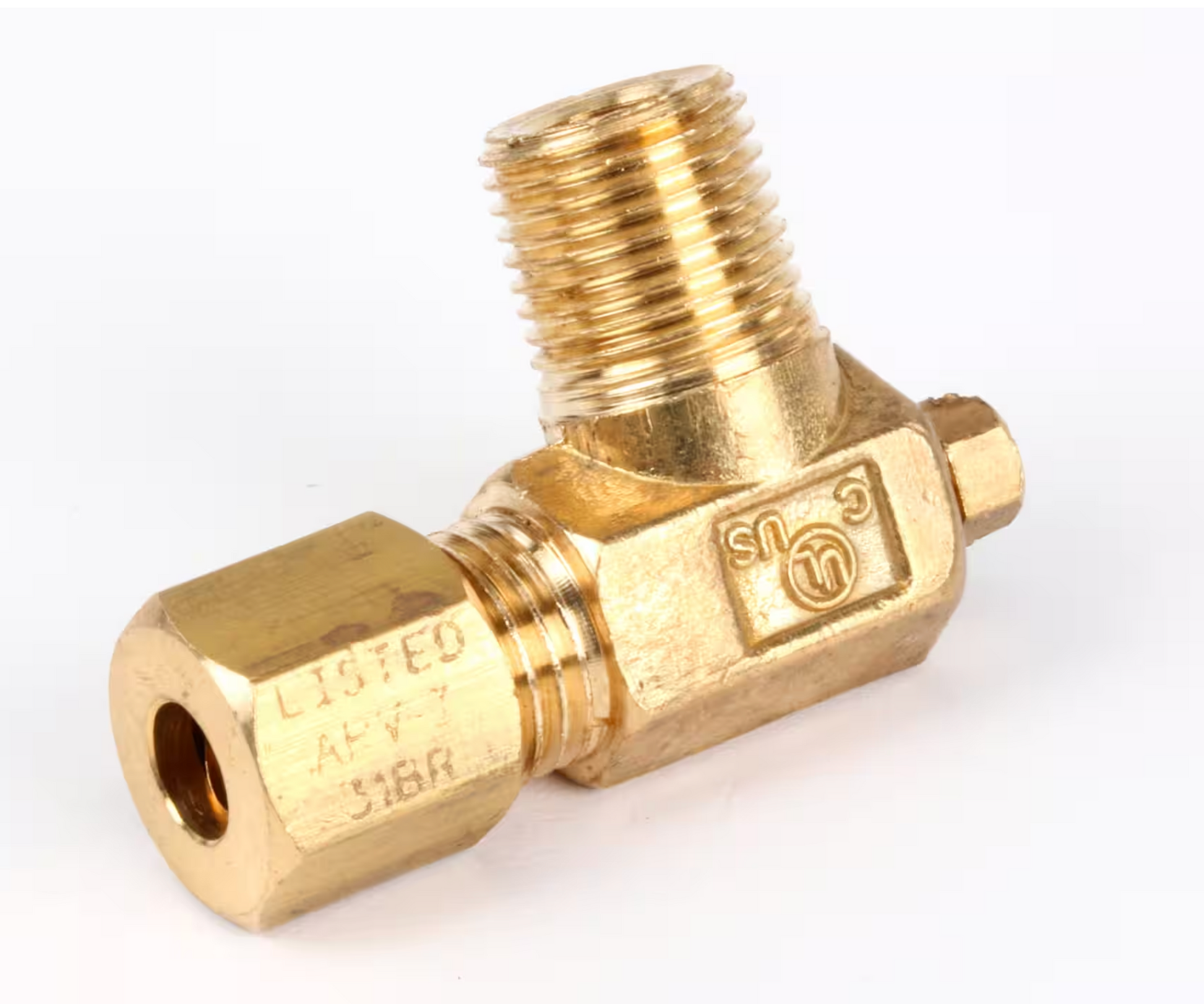

Imperial Range 1604 Pilot Adjusting Valve (90 Deg, 3/16" CC x 1/8" NPT)

Factory Direct Commercial Grade Replacement Part

Get your commercial kitchen back up and running instantly with the precision-engineered Imperial Range 1604 90-Degree Pilot Adjusting Valve (3/16" CC x 1/8" NPT). As the direct manufacturer of high-output commercial stove components, we cut out the distributor markup to offer you the industry’s lowest pricing and same-day factory-direct shipping on premium cooktop replacement parts.

Precision-engineered for an exact OEM fit, this genuine 90-degree brass pilot adjusting valve features a 3/16" CC tube fitting by 1/8" NPT male thread. Designed for universal application across Imperial commercial equipment, it allows fine-tuned manual adjustment of the pilot flame size to ensure immediate main burner ignition, optimal fuel efficiency, and safe continuous operation.

Why Buy Factory Direct from Commercial Stove Parts?

• Better Pricing: Skip the middleman distributor markup—get true wholesale factory pricing direct from the source.
• Lightning-Fast Shipping: In stock at our facility and ready to ship out immediately to minimize kitchen downtime.
• Commercial Grade Brass Construction: Machined from solid, high-grade brass alloy engineered to withstand extreme manifold heat, continuous thermal cycling, and heavy commercial line use without binding or leaking gas.

Guaranteed Fitment & Compatibility

Precision engineered for universal fitment across pilot manifold assemblies on Imperial Range commercial equipment:

• Popular Models: Fits ICMA-24, ICMA-36, ICMA-48, ICMA-60, ICMA-72, and all Imperial commercial range, charbroiler, and oven lines using 3/16" CC x 1/8" NPT pilot valves
• Replaces Part Numbers: Imperial 1604, IMP1604

Technical Specifications

• Component Type: Commercial 90-Degree Pilot Adjusting Valve
• Manufacturer Part Number: 1604 / IMP1604
• Connection Size: 3/16" CC x 1/8" NPT
• Angle / Profile: 90 Degree Elbow Design
• Length: 1.20 in / 3.05 cm
• Width: 0.85 in / 2.16 cm
• Height: 0.50 in / 1.27 cm
• Weight: 0.05 lbs / 23 g
• Material Construction: Solid Heavy-Duty Brass
