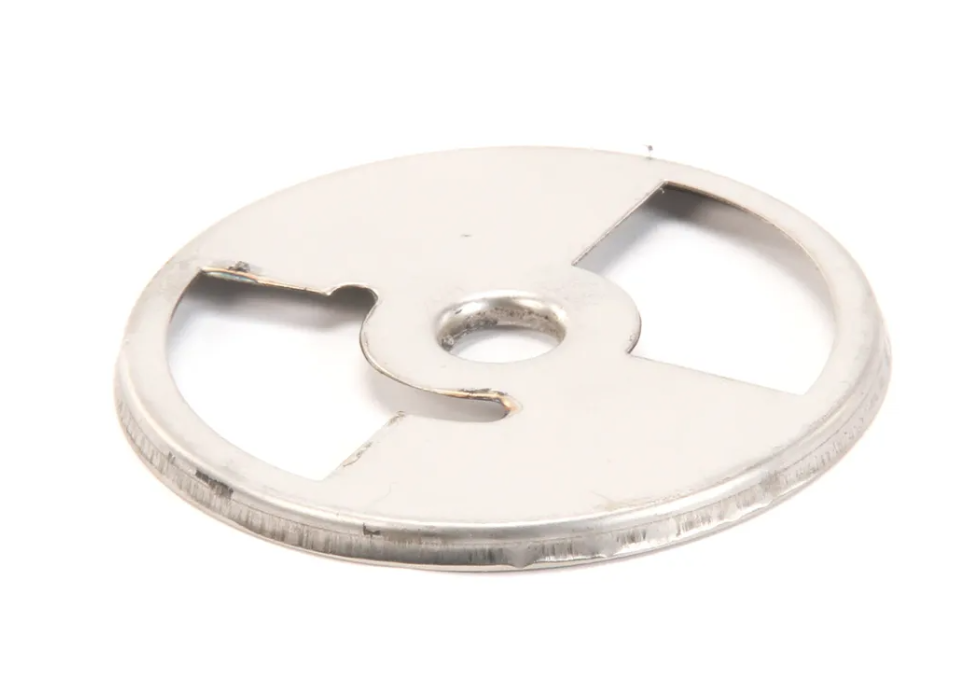

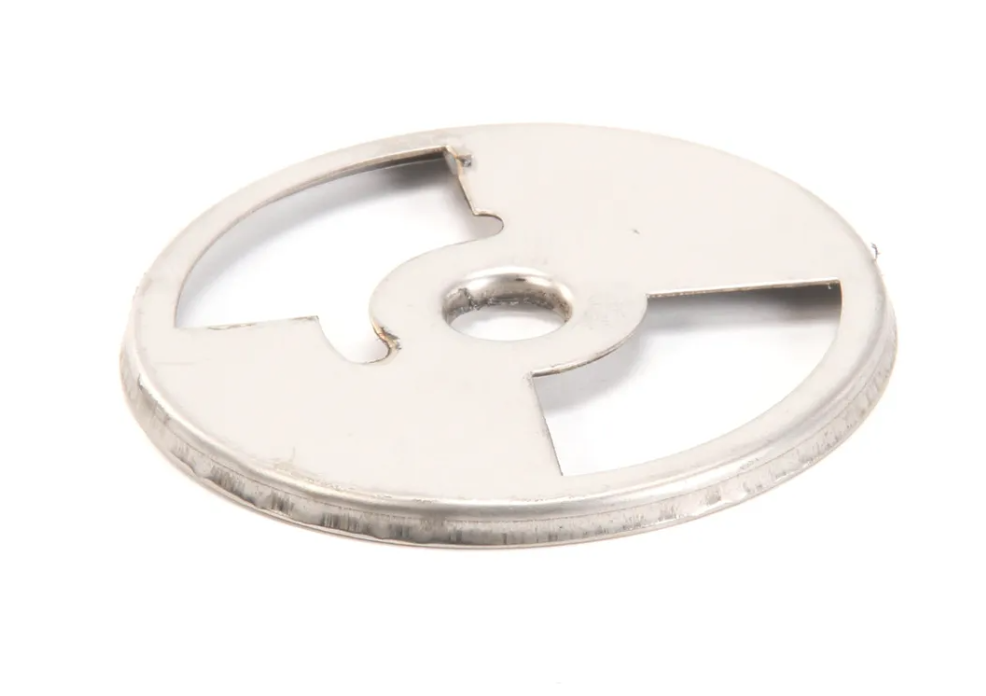

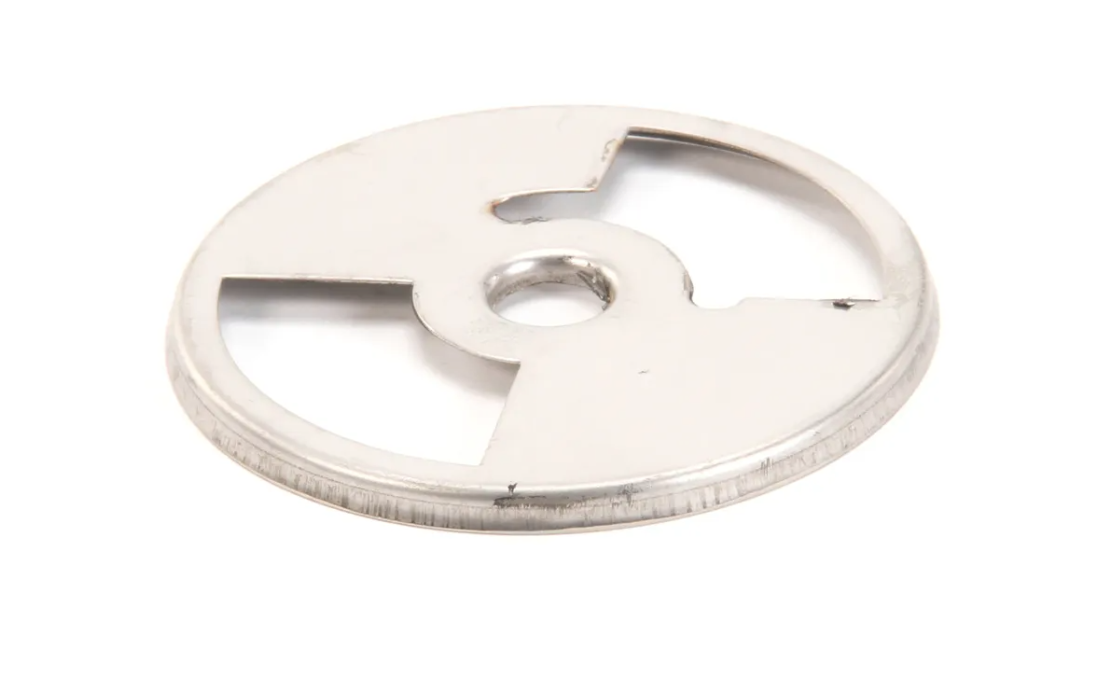

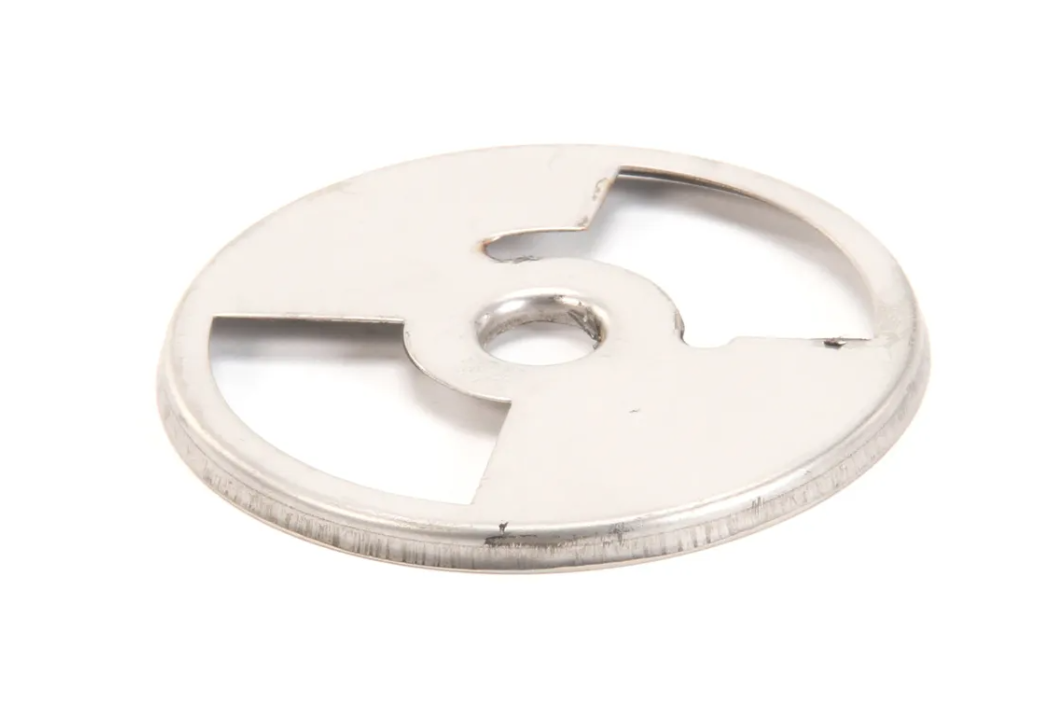

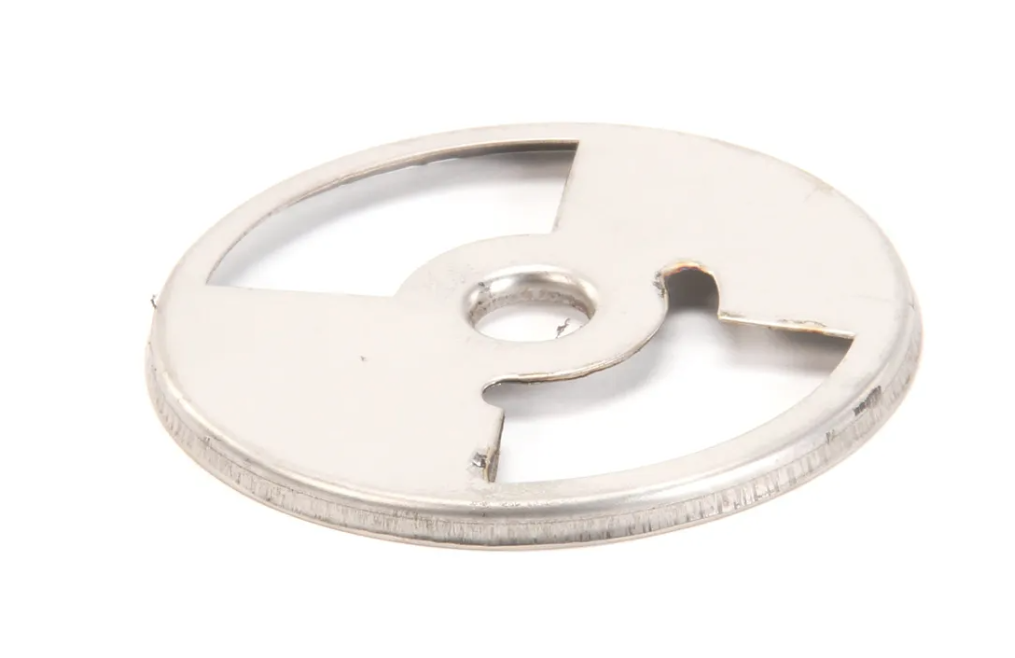

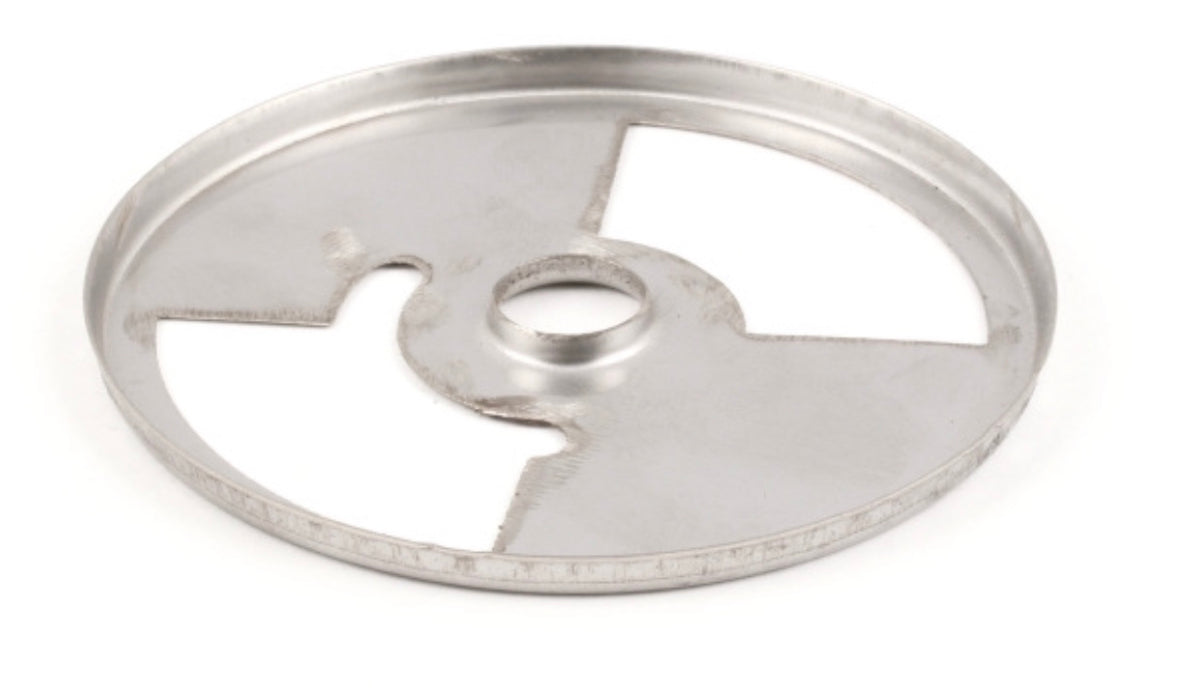

This commercial burner air shutter (mixer) is a factory-direct compatible replacement for Royal Range part 1108. It regulates combustion air entering the burner so the air-to-gas mixture can be adjusted for a stable flame.
Product Details
Part type: Burner air shutter / air mixer
Manufacturer reference: Royal Range 1108
Parts Town reference: ROY1108
Previous part reference: RANRDLR-05
Dimensions: 2.15 in L × 2.15 in W × 0.30 in H
Weight: 0.02 lb (9 g)
Unit: Each
Compatible Equipment
Used on compatible Royal Range commercial cooking equipment, including selected RCB, RHP, RR, RRE and RSCB series models. Visible model references include RCB-18, RCB-24, RCB-30, RCB-36, RCB-48, RCB-60; RHP-12-1, RHP-12-2, RHP-24-2, RHP-24-4, RHP-36-6, RHP-48-8; RR-8, RR-8-C, RR-10, RR-10-C, RR-12, RR-12-C; and RSCB-18, RSCB-24, RSCB-36 and RSCB-48.
Important: Confirm part number, equipment model, dimensions and burner configuration before ordering. This is a compatible replacement part and is not represented as a Genuine OEM Royal Range part.
